Nine Patch

NinePatch widget is used to split an image in nine sections, where each corner section will remain the same, while the middle parts between each corner will be used to evenly fill the space. This widget is primarily used in the UI to create resizable frames, buttons, windows, etc.

Example

Let’s say we want to make a stretchable container for various items, but want to keep the corners undistorted. We’ll use the following frame:

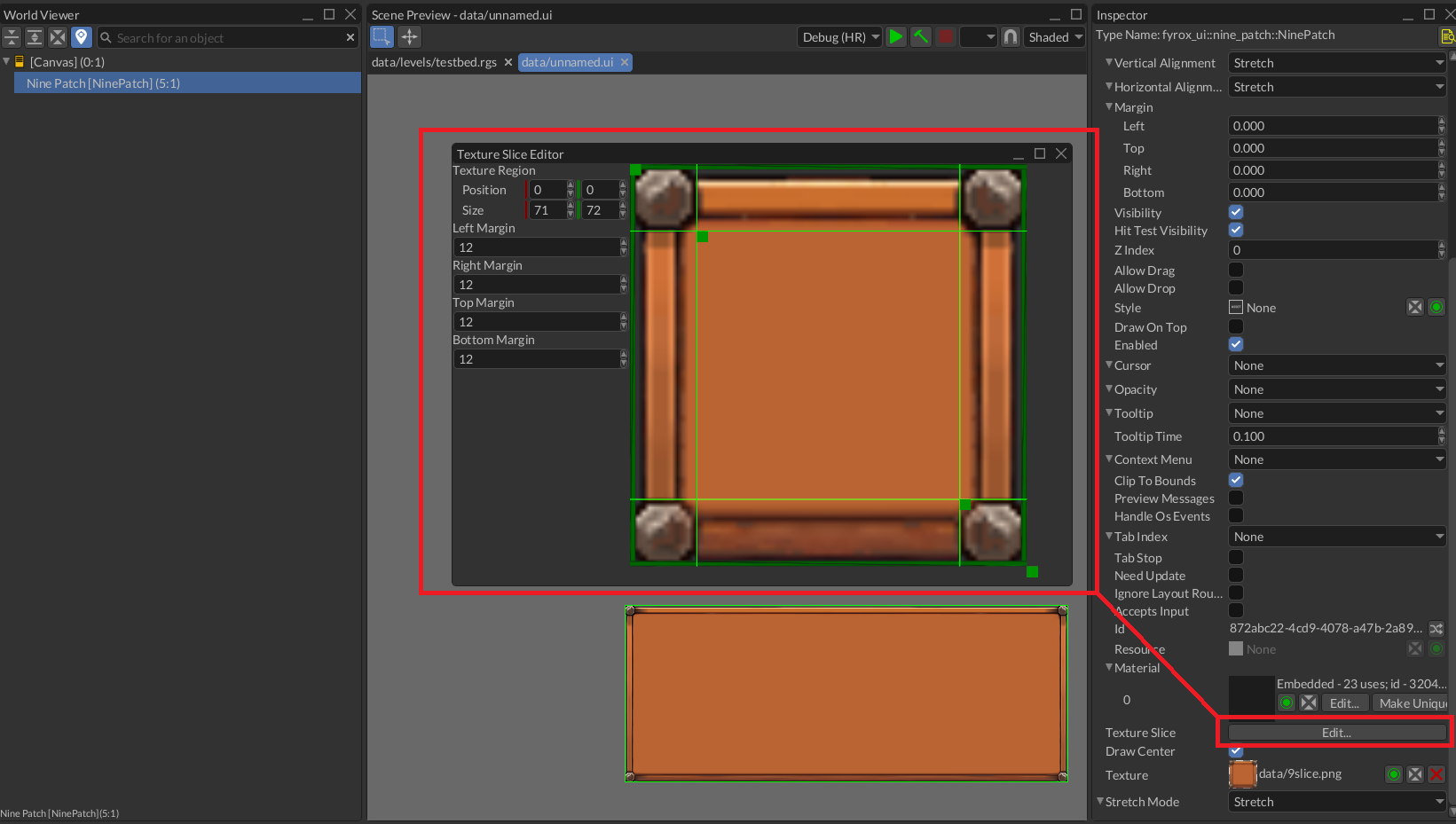

The easiest way of creating such a nine patch frame is to use the texture slice editor, that can be opened by clicking on Edit... button of the texture slice field:

As you can see, the corners of the frame are not distorted.

The same effect can be achieved from code. The following examples shows how to create a nine-patch widget with a texture and some margins.

#![allow(unused)]
fn main() {
fn create_nine_patch(texture: TextureResource, ui: &mut UserInterface) -> Handle<NinePatch> {
    NinePatchBuilder::new(WidgetBuilder::new())
        // Specify margins for each side in pixels.
        .with_left_margin(12)
        .with_right_margin(12)
        .with_top_margin(12)
        .with_bottom_margin(12)
        .with_texture(texture)
        .build(&mut ui.build_ctx())
}
}

Atlas Region

It is also possible to specify an atlas region where the source image is located:

#![allow(unused)]
fn main() {
fn create_nine_patch_with_region(
    texture: TextureResource,
    ui: &mut UserInterface,
) -> Handle<NinePatch> {
    NinePatchBuilder::new(WidgetBuilder::new())
        // Specify margins for each side in pixels.
        .with_left_margin(12)
        .with_right_margin(12)
        .with_top_margin(12)
        .with_bottom_margin(12)
        .with_texture(texture)
        // Additionally, you can also specify a region in a texture to use. It is useful if you
        // have a texture atlas where most of the UI elements are packed.
        .with_texture_region(Rect::new(200, 200, 400, 400))
        .build(&mut ui.build_ctx())
}
}

Stretch Mode

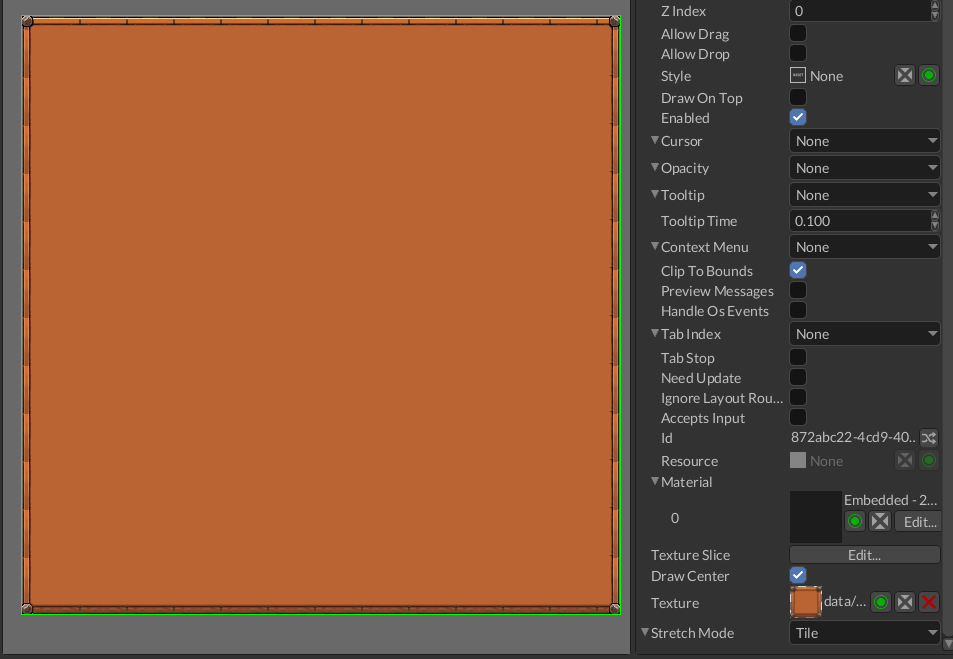

It is also possible to specify stretch mode for every part except the corners. This can be done by selecting the desired mode in Stretch Mode property.

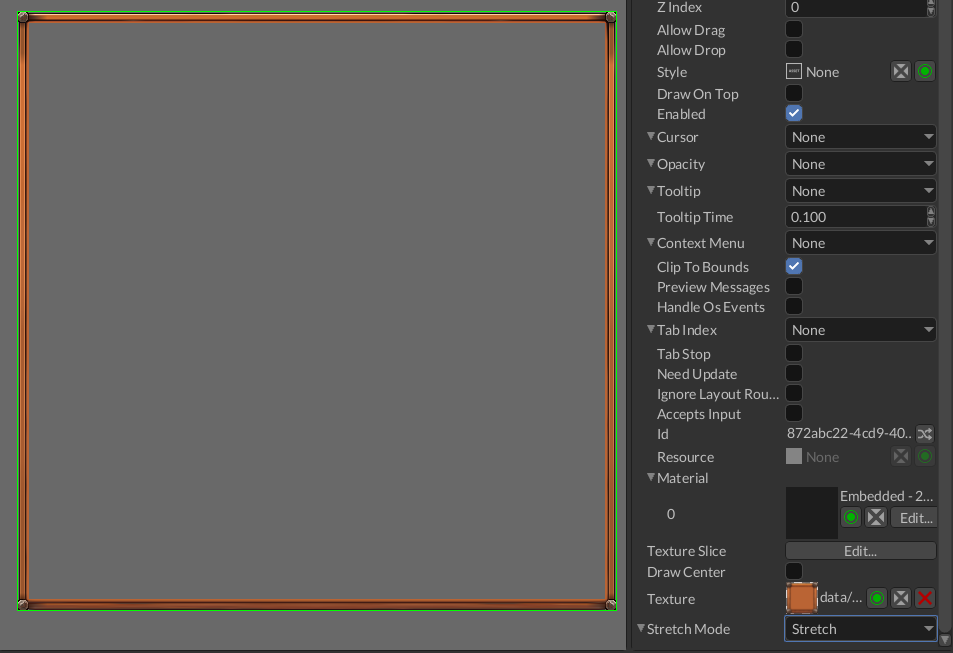

Center Hole

Sometimes there’s no need to draw the center tile, it can be achieved by unchecking the Draw Center bool property.
